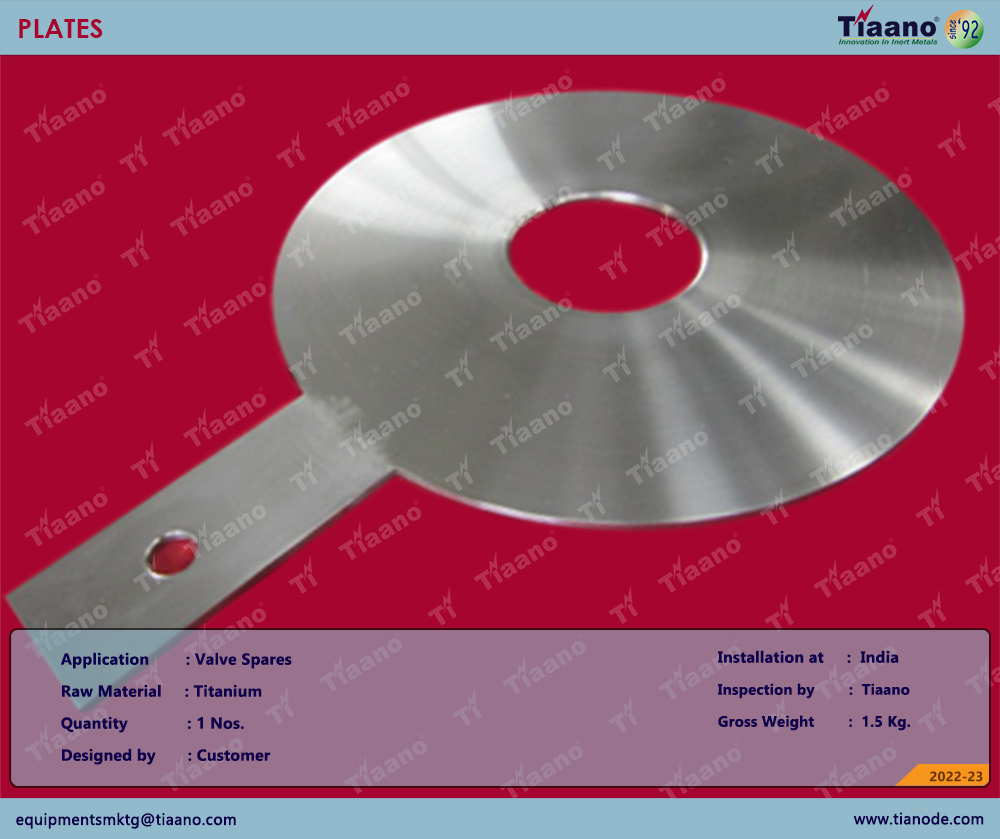

Ti Anode Fabricators Pvt Ltd has an internationally recognized reputation for the manufacture of the Titanium GR.2 Orifice Plate. Titanium Grade 2 Orifice Plate has highest ductility and an excellent resistance from mild to high oxidization.
Orifice plates are one of the most popular devices for the measurement and control of fluid flow. The shape and manufacturing tolerances of plates used in measurement applications are defined in the international standardization publications of ISO, AGA, ASME and others. From the formulas and data within these publications, the relationships and values of flow, differential pressure, and plate bore are determined.
In flow control applications, orifice plates are used as restriction devices to regulate fluid flow or reduce the flowing pressure downstream of the orifice plate. The use of a fixed restriction orifice can be beneficial and economic by reducing the demands on other flow system components.
Orifice Plates are normally mounted between a set of Orifice Flanges and are installed in a straight run of smooth pipe to avoid disturbance of flow patterns from fittings and Valves.
Types of Orifice Plates:
1. Square Edge (Standard) Bore
2. Quadrant Edge Bore
3. Eccentric Bore
4. Segmental Bore
5. Paddle Type
6. RTJ Type Orifice Plates
Our sincere team of professionals and employees are always making an extensive effort to make high range of qualitative products which can be completely satisfy the expectations of our reliable consumers. You can avail this range of Clamps at a very reasonable price and with customer customization. We are proficiency in ethical to the equipment demands in diverse industries including Power, Oil & Gas, and Chemical, Water & Waste Water Treatment, Food, Pharma and others.
For any inquiry in regards to Titanium GR.2 Orifice Plate please contact us on +91 8438164458 or email us on email@example.com.
