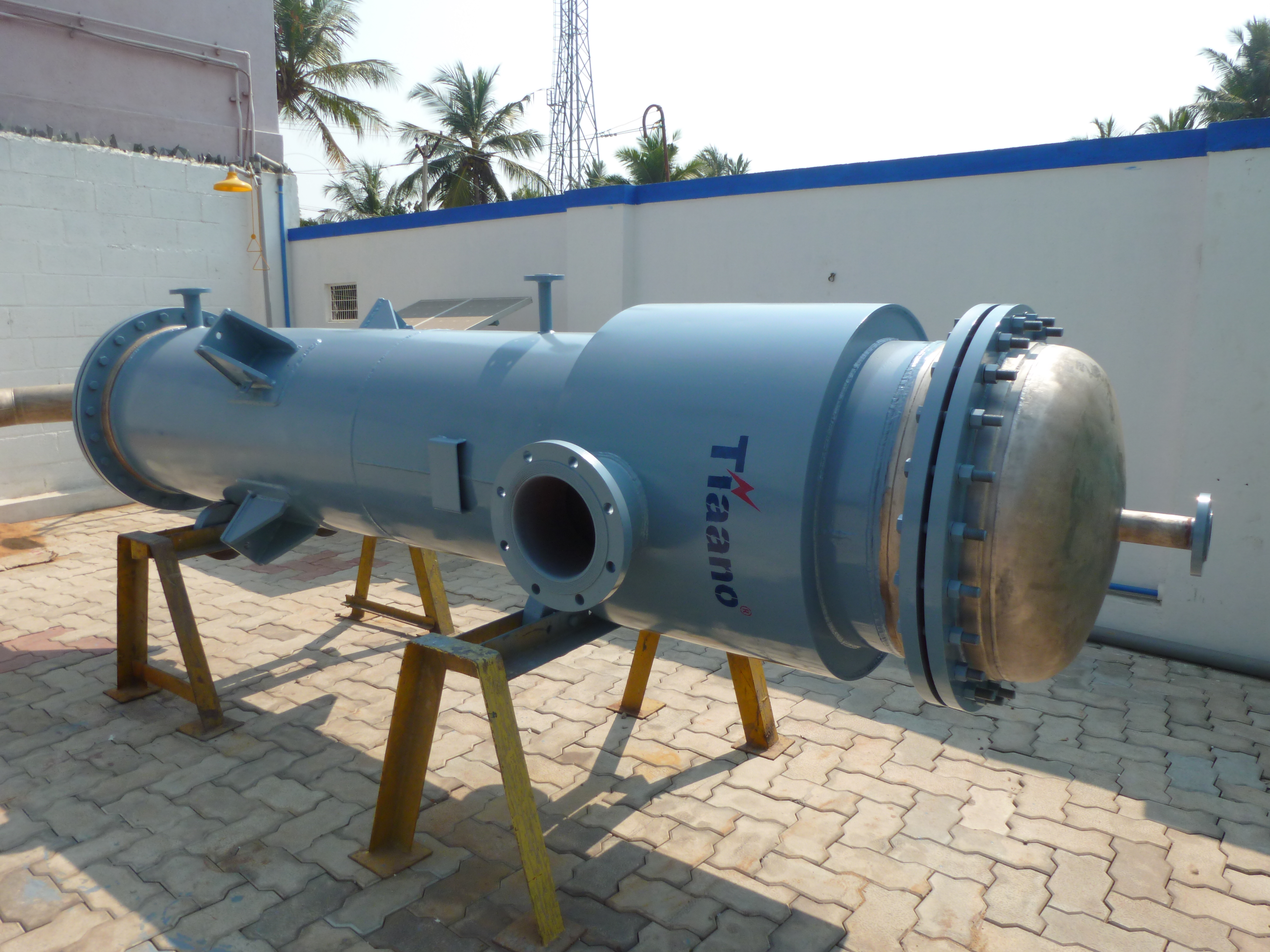

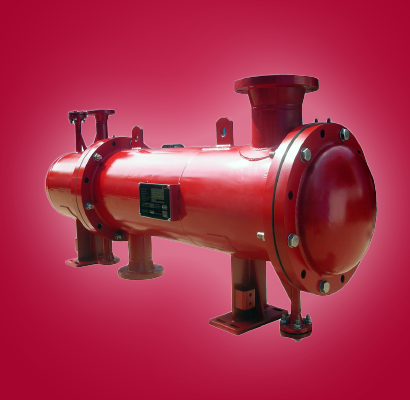

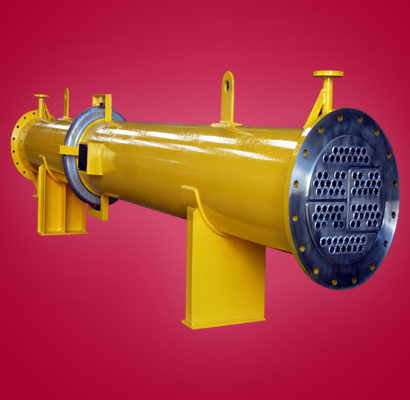

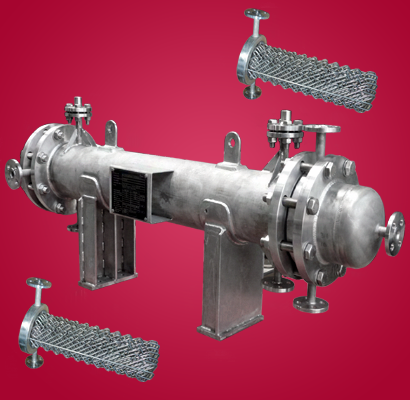

Heat Exchangers ( Shell & Tube )

Ti Anode Fabricators Pvt Ltd offer the Shell Tube Heat Exchangers out of Titanium, Ti-Pd, Tantalum, Niobium Zirconium, Nickel, Hast alloy B & C, Inconel, Monel & its Alloys

Range

• Shell Diameter:  Upto 2 mtrs.
• Tube Diameter:  Upto 50.8 mm
• Tube Sheet Details  Thick : max 100mm | Type : Solid / Claded Plate
• Length  Upto 8 mtrs.
• 'U' Tubes  Upto 8 mtrs.

Design Code

ASME & TEMA

Test

        A. Pressure

• Shell Side:  max. 50.0 Kg / cm2
• Tube Side:  max. 50.0 Kg / cm2

        B. Non Destructive Testing

• Radiographic Test Unit (Gamma & X-Ray).
• Ultrasonic Flaw Detector.
• Magnetic Particle Crack Detector.
• Liquid/Dyepenetrant Test Facility.

Inspection & Q.A

• Lloyds
• Humbherys & Glasgow
• Devi Power Gas
• Inspectorate India
• IGCAR
