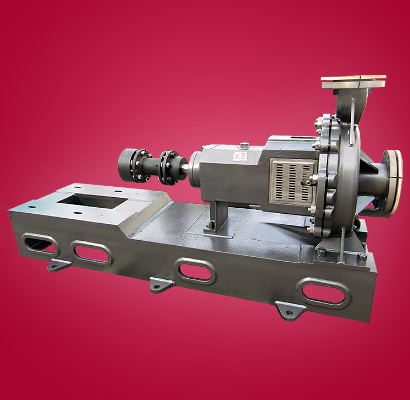

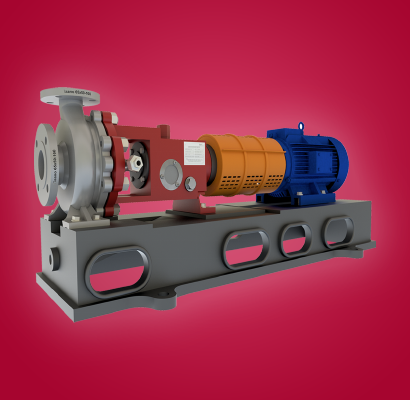

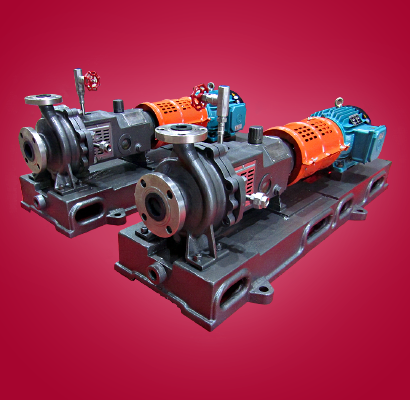

Pumps
Ti offer the chemical process pumps and impellers out of Titanium, Ti - Pd, Tantalum, Zirconium, Nickel, Hast alloy B & C, Inconel, Monel, & Alloy-20
Design
- Standard: API 610, ISO 2858
- Testing: API 610 / IS 5120
- Flange: ANSI B16.5
Operated Data
- Discharge capacity: up to 2000 m3 / h
- Head: up to 200 mtrs.
- Variable Speed: 1440 / 2900 rpm
- Working pressure: 25kg / cm2 max.
- Temperature Operating: 400C ~ 1750C
Part List & Material Of Construction
| S.No |
Part Name |
Titanium |
Ti-Pd |
Zirconium |
Alloy-20 |
Nickel |
Hastelloy |
Monel |
Others |
| 1 | Casing | x | x | x | x | x | x | x | |
| 2 | Impeller | x | x | x | x | x | x | x | |
| 3 | Ball Bearing | | | | | | | | Steel |
| 4 | Oil level Indicator | | | | | | | | Glass |
| 5 | Shaft | | | | | | | | SS 316 |
| 6 | Shaft Sleeve | x | x | x | x | x | x | x | |
| 7 | Stuffing box cover | x | x | x | x | x | x | x | |
| 8 | Mechanical Seal | | | | | | | | Standard |
| 9 | Bearing Housing | | | | | | | | C.I |
| 10 | Gland | x | x | x | x | x | x | x | SS 316 |
| 11 | Gasket | | | | | | | | Teflon |
| 12 | Stud/Nut cover to adapter | | | | | | | | SS 304 |
| 13 | Oil Seal | | | | | | | | Viton |
| 14 | Casing gasket | | | | | | | | EPDM |
| 15 | Casing drain plug | x | x | x | x | x | x | x | |
| 16 | Vent Plug | | | | | | | | Steel |
| 17 | Support Foot | | | | | | | | IS 1865 |
| 18 | O-Ring | | | | | | | | Teflon |
